CHA20 Chronometrer

This equipment is a digital chronometer wich allows to measure time between 2 pulses generated either by a dry contact, by a TTL input, or by an AC or DC voltage.

It is used to verify protection relays.

CHA20 is fitted in a metallic box size 150 x 260 x 340

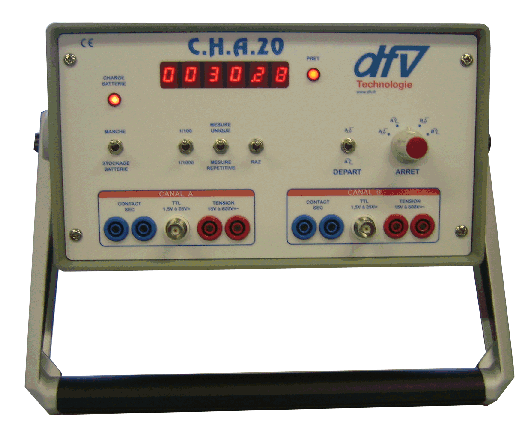

Front panel :

6 digits chronometer and Led indicated that CHA20 is ready.
Range switch (1/100 or 1/1000 second)
Mode switch (single or multiple measures)
RAZ switch
Start/stop mode switch
2 Input channels (A and B)

For each channel :

one dry contact input
one TTL input (DC courant input from 1,5 to 25 V)
one voltage input (DC or AC voltage from 15 to 600 V)

A build-in battery allows a 2 hours working

Optionnal flight case
