Measure accessories

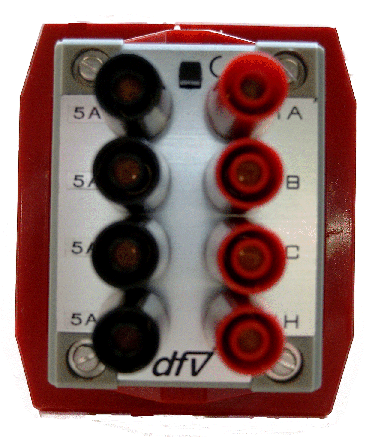

ADAPTESSAILEC-I              ADAPTSECURA-I

  • Cuurent converter fitted in an  ESSAILEC/SECURA plug

  • Output on security plug Ø 4mm.

  • Range available : 2,5A / 5A / 10A / 25A

  • Output voltage 5V / 2V or 1V

  • Already exist in single channel to measure Homopolar (Ih)

  • Can be used with APR8, APRV, APR16, APR4U4I, ES8, BSCOPE ....

  • Ranges can be different on any channel

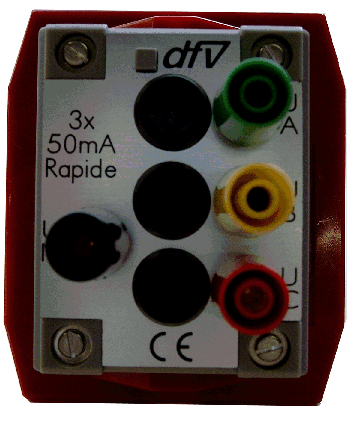

ADAPTESSAILEC-U      ADAPTSECURA-U

  • Voltage adapter on ESSAILEC/SECURA plug

  • Output on security plug Ø 4mm

  • protection against short circuits with fuse

  • Can be used with APR8, APRV, APR16, APR4U4I, ES8, BSCOPE ...

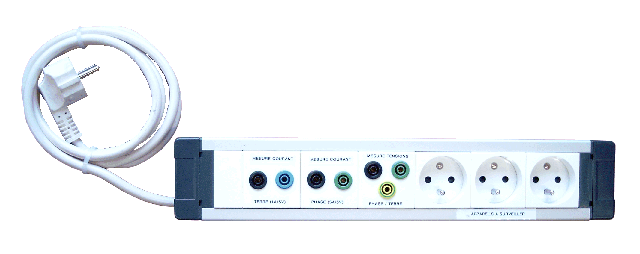

MONOCAPT

  • Monitoring of a single phase equipment

  • Measure of 3 voltages

  • Measure of current with an integrated  5A/5V convertor

  • Measure of earth current with an integrated 1A/5V convertor

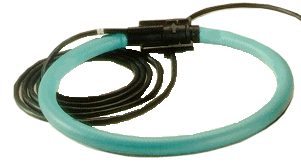

CAPTFLEX

  • Measure of current with a flexible clamp

  • powered by electical network analyzer APR

  • Range 60A  / 600A / 3000A

  • Size : 180mm / 250mm or 450mm
